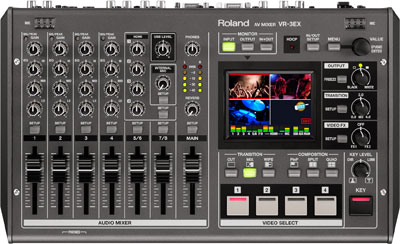

Roland VR-3X

$2195.00

The Roland VR-3EX is the next generation 4-channel SD performance mixer which features HDMI inputs/outputs, USB streaming, HDCP support, built-in touch multi-viewer, an audio mixer all in a compact portable unit.Designed to be a live production switcher thebuilt-in audio mixer with up to 4 frames delay to “lipsync” your video source. Scaling on the output allows you to output up to 1080p HD Video and Audio quality. More Info

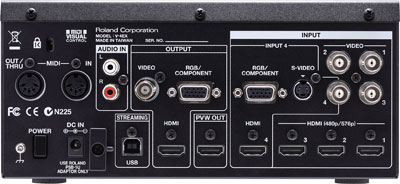

Roland V-4EX

$1995.00

Accessible and quality video performance and web streaming - The V-4EX - advancing the legendary V-4 and V-8 family to now include HDMI in/out, progressive internal processing, audio embedding, USB streaming and built-in touch monitor.

The Roland V-4EX advances the industry-standard Roland V-4 four channel video mixer by incorporating HDMI inputs/outputs, USB streaming, HDCP support, built-in touch multi-viewer, and audio embedding. These features are added to the strong primary feature set including built-in effects and unique user interface that has made the V-4 one of the besting selling video mixers of all time.

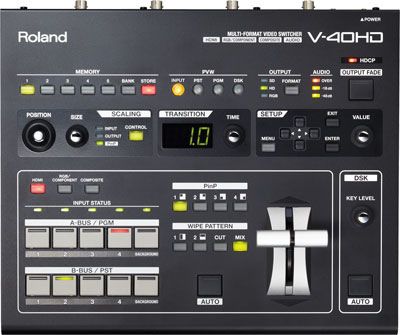

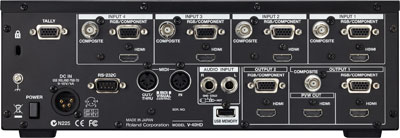

Roland V-40HD

$3995.00

The Roland V-40HD Multi-Format Live Video Switcher is a welcomed addition to the powerful V-1600HD and V-800HD model lineup. The V-40HD Live Video Switcher is ideal for any live event or installation that requires the freedom to connect a variety of sources whether they be digital or analog, computer or video format. It is particularly positioned to support configurations using popular HDMI cameras as well as computers.

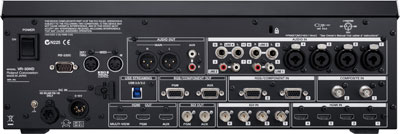

Roland VR-50HD

$7495.00

A complete portable HD studio in a single unit. Single-person operation of sound and picture using faders, buttons and touch screen. The Roland VR-50HD all-in-one AV mixer beautifully integrates an audio mixer, video switcher, multi-viewer touch screen and USB video/audio streaming into a stand-alone device. This single unit delivers functionality that until now required a number of peripheral devices to accomplish. This portable live HD production solution is ideal for schools, churches, council meetings, corporate events, sports, trainings, or any other live event.

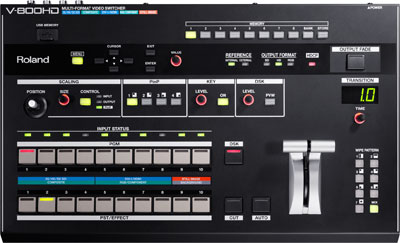

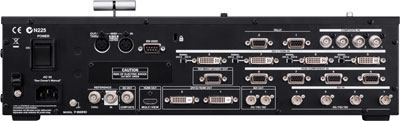

Roland V-800HD

$9995.00

The V-800HD Live Video Switcher is ideal for any live event or installation that requires the freedom to connect any type of source whether it be digital or analog, computer or video format.

Just like the design of the popular Roland V-1600HD switcher the V-800HD is a true multi-format video mixer meaning there is no need to match input sources to the output resolution. Every input has it's own broadcast quality scaler that can individually scale, stretch, crop and zoom each source as required to fit any output resolution chosen.

The V-800HD is HDCP compatible and also features a built-in multi-viewer output that provides a convenient monitoring solution when connected to an HDMI monitor. The eight mixing channels provide connectivity to 3G/HD/SD-SDI, DVI-A/DVI-D/HDMI, RGB, component, and composite formats – as well as an additional two channels for still images assignable via USB memory stick or frame grab. A newly developed key-compositing engine lets you adjust phase range, amount of chroma, and HSV color space parameters.  Another key compositing feature includes an external keyer enabling CG titles and gradation clips, enabling impressive visual effects.

Assignable video cross-points allow reordering channel buttons which is especially useful when sudden changes in camera lines or differences in formats create blank spaces between select buttons on the bus. A dedicated composite output enables a down-converted SD signal that is always ready to use for archiving to a DVD recorder or to an encoder for streaming.

The Multi-Zoom feature can be enabled when one video input is shared internally with up to three more inputs – essentially daisy-chaining it. The scaler for each input can zoom into any position in the video image giving the appearance that additional cameras are connected – creating a virtual multi-camera environment. Additional effects include a down stream keyer (DSK), a composite keyer, Picture-in-Picture and multiple transitions.

The V-800HD supports an incredible variety of system design and creative production options for live or fixed installation applications. It is adept and handling LED wall sizing challenges and is ideal for any live event or installation demanding flexibility, stability, high quality, ease of use, and professional connectivity. With video output resolutions up to 1080/60p, 4:4:4/10-bit processing, and support for 3G SDI input resolutions; the highest quality video is achieved. The V-800HD Video Mixer strengthens Roland's Multi-format video mixer line-up and is positioned to the pinnacle of quality video production for live event, broadcast, corporate, educational, and house of worship applications.

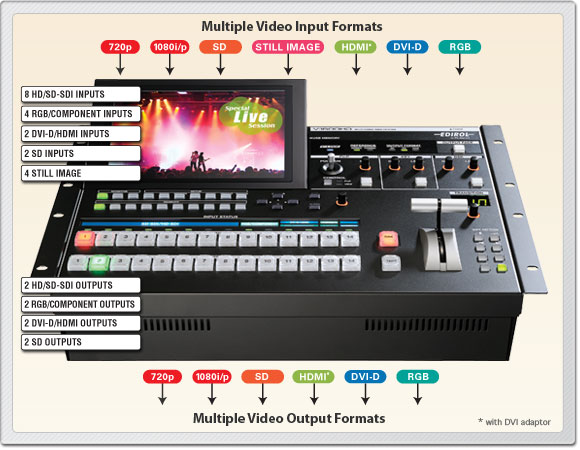

Roland V-1600HD

$12995.00

The V-1600HD Live Video Switcher is ideal for any live event or installation that requires a high channel count and the ability to accept a variety of video input formats out of the box.

The V-1600HD switcher features a built-in preview monitor that provides a convenient monitoring solution when external monitors are not available or ideal.  The sixteen inputs provide connectivity to HD/SD-SDI, DVI-D/HDMI, RGB, Component, S-video, and composite formats – as well as still images assignable via USB memory.  The 14 mixing channels provide built-in scalers and frame syncs for worry-free seamless mixing regardless of the resolution or format.

The V-1600HD supports an incredible variety of system design and creative production options for live or fixed installation applications. Dual independent multi-format outputs provide a number of innovative multi-screen output options including the ability to SPAN the mixer output to two projectors with the ability to edge-blend the center. In AUX mode, the outputs can be set to different resolutions which is ideal for sending the program out to a record feed.

The V-1600HD Video Mixer brings high quality video production to live event, corporate, educational, and house of worship applications.
