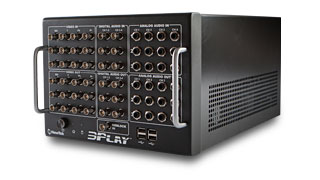

3play 330

It’s tough to be taken seriously when your sports video doesn’t cut it. Especially when you’d like to be up there side-by-side with the big-budget network broadcasts, the non-stop action and the extended drama of their highlights and instant replays. Now you can step into the ring. With 3Play 330, you add a whole new dimension to your live sports production, far more affordably than was ever possible before.

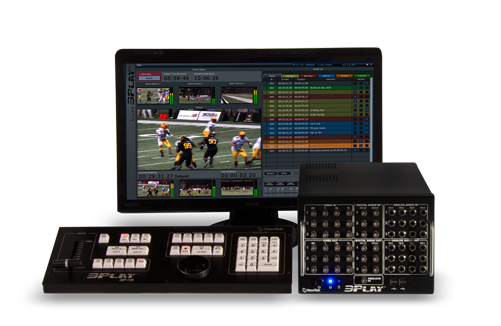

3play 330
  • Multi-camera recording from three inputs
  • Instant replay and variable slow motion
  • Three video outputs
  • Small footprint fits on a desktop, an empty shelf or a spot at the press table
  • Included control surface with premium T-bar, speed presets, and jog wheel

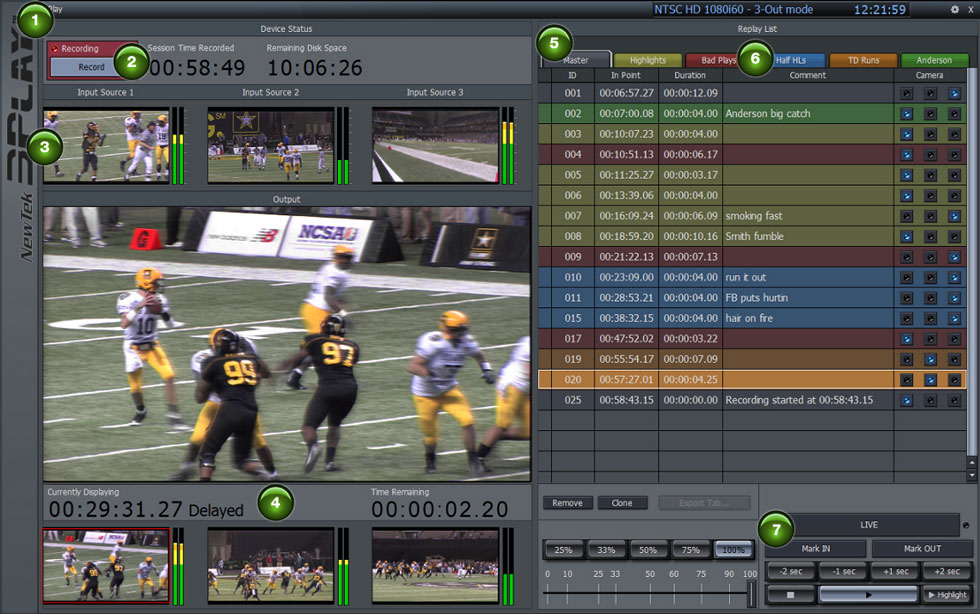

3Play 330 - Interface



3Play 330
  1. REPLAY INTERFACE is the control center for your 3Play 330 production. Connect up to three HD or SD cameras, audio sources, and the included 3P-10 control surface to manage recording, playback, clip marking, playlist creation, and more.
  2. ONE-BUTTON RECORDING simultaneously captures video from up to three cameras. 3Play 330 also supports automatic recording (activated by performing select operations).
  3. INPUT MONITORS let you view the live action from every angle, with interactive, full field rate displays.
  4. OUTPUT MONITORS include a large monitor for Main Output and preview monitors that show the three video channels available for playout. In 3-Out mode, 3Play 330 outputs all three angles. In 1-Out mode, a single camera angle can be selected for output or camera angles can be switched live for multi-angle playback.
  5. EVENT PANEL offers a master list and custom lists for quick and easy access to all available clips (or events) for immediate playback. Clip notes can be entered for each event, allowing you to find and replay highlights – instantly.
  6. CUSTOM LISTS let you organize events, create highlight reels or arrange selected events for sequenced playback, using color-coded tabs with customizable labels.
  7. INTERACTIVE DASHBOARD lets you perform the functions of the 3P-10 control surface from the replay interface, using on-screen controls that include playback speed presets, mark in, mark out, and transport

3Play 330 - Tech Specs

Video Inputs 3 simultaneous inputs
Any combination of: HD-SDI, HD Component, SD-SDI, SD Component, Composite, or Y/C (BNC)
Video Outputs 2 selectable playout channel modes:
3 simultaneous outputs, fixed (3-Out)
1 switchable output (1-Out)
HD-SDI, HD Component, SD-SDI, SD Component, Composite, or Y/C (BNC)
Output Modes 3-Out; 1-Out
Video Formats NTSC: 1080/60i, 720/60p, 480/60i
Multi-Standard: NTSC-J; PAL 1080/50i, 720/50p, 576/50i
Supports 16:9 and 4:3 aspect ratios
Recording Channels 3
Recording Capacity 30 hours of combined 1080i storage (10 hours of 3 simultaneous channels)
Genlock Locks to HD or SD analog signals
Supports either tri-level or bi-level sync sources
Audio Inputs 3 SDI Embedded
3 x 2 AES3/EBU
4 x 3 Balanced 1/4" (Mic/Line)
Audio Outputs 3 SDI Embedded
3 x 2 AES3/EBU

4 x 3 Balanced 1/4" (Mic/Line)
Audio Processing Audio is uncompressed and sampled at 48kHz, 24-bit
A/V Standards HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
Controller Dedicated controller with T-bar, jog wheel, speed presets, and clip transport
Dimensions 10.4 x 8.5 x 17.5 (in)
26.4 x 21.6 x 44.5 (cm)
Weight 19 lbs (8.6 kg)
